Platform scale WM30P1 30X40S |
|
| Functions and features of the scale: |
 | Additional stabilization result |
 | Counting pieces |
 | Remembering last result |
 |
Checkweighing |
 | Backlit display |
 |
Mini USB |
 |
5 years warranty on load cell |
 | 2 years warranty |
|
|
  | Possible legalization |
| Overview: |

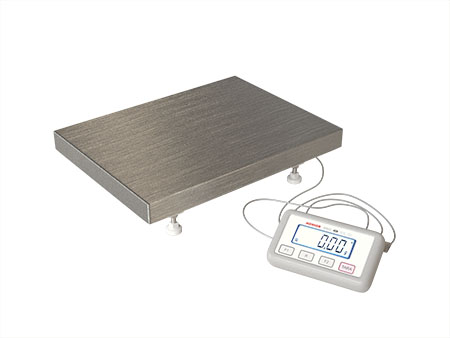

Platform scale WM30P1 30X40S is equipped with large backlight liquid crystal display, adjustable legs. Pan is removable and made from stainless steel. Scale features: tare, remember the last result of weighing, checkweighing ,counting pieces with same unit mass on the basis of sample 1-500pcs, and an additional filter - this feature enables stable reading during of weighing moving objects or ground vibrations.
|
| Technical specification: |
|
Additional options: |
| Max capacity |
30kg |
- up to 50h on lion battery power to continuously work
- RS 232 with cable 2m
- RS 485
- Genie program - description
- signal tower
- higher IP rating for scale platform (IP 65)
|
| Min capacity |
200g |
| Tare range |
-30kg |
| Display resolution |
2g / 10g |
| Time stability indications |
1-2s |
| Weight |
5,5kg |
| Working temperature |
+10°C - +40°C |
| Dimension of pan |
30x40cm |
| Overall dimensions |
304x404x85mm |
| Power supply | stabilized adapter 12V/100mA |
|
|
| |
|
|
|
|
|

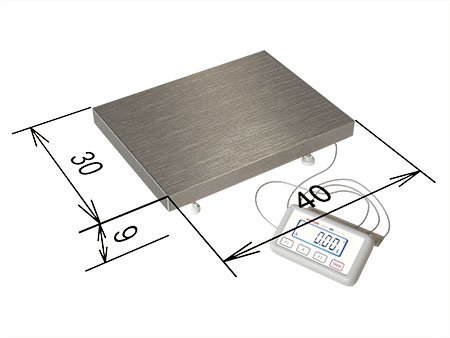

| Figure - Overall dimensions and weight pan [cm]: |
|
|
|
|
 |
|
|
|
|
|
