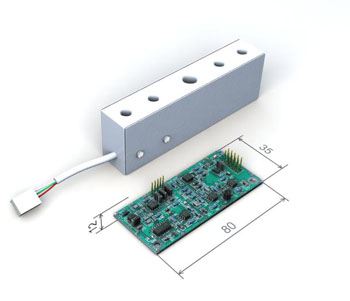

Inductive load cell with amplifier type IM

Inductive load cell type IL with measuring amplifier can be apply for design electronic scales and for measuring systems of the force. It works together with measuring amplifier, which output signal: 2 – 3 V is proportional to measuring mass.

Maximum length of the output cable: 650 mm



Max. capacity

kg

1,5; 2; 3; 6; 15; 20

Supply voltage (DCV)

V

5

Output signal

V

~ 2 ¸ 3

Sensitivity

mV /V

0,025

Non-linearity

%

< ± 0,01

Hysteresis error

%

+ 0,01

Creep error (30 minutes)

%

<= + 0,014

Temperature effect on sensitivity

%/10°C

<= ± 0,01

Temperature effect on zero balance

%/10°C

<= ± 0,04

Temperature of work

°C

+10 ¸ + 40

Max. safe overload

% (depends on capacity)

200 - 400

Temperature of storage

°C

-20 ¸ + 80

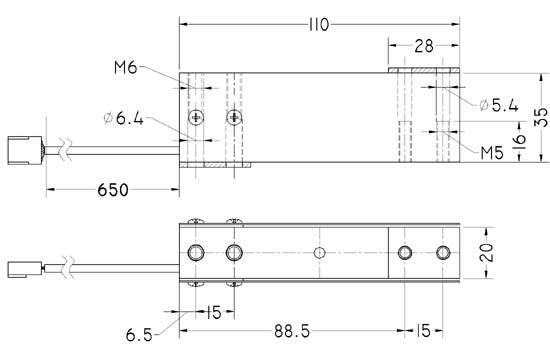

Dimensions of inductive load cell type IM
